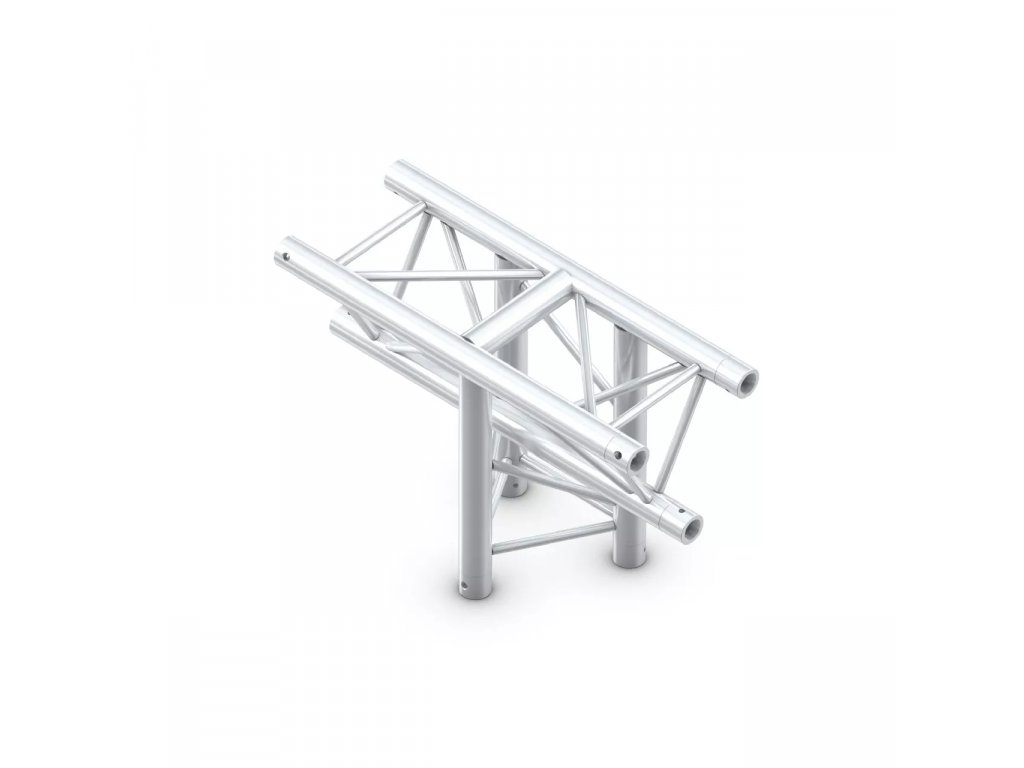

M290V TRIO three-way vertical tee, top down
Product detailed description
Three-point truss construction of the M290 TRIO system, "V" variant designed for high loads. Thanks to its low weight, high variability and easy installation, it finds application in various uses, whether in theaters, music clubs, lecture halls, exhibition spaces, at concerts, during the construction of stages, etc.

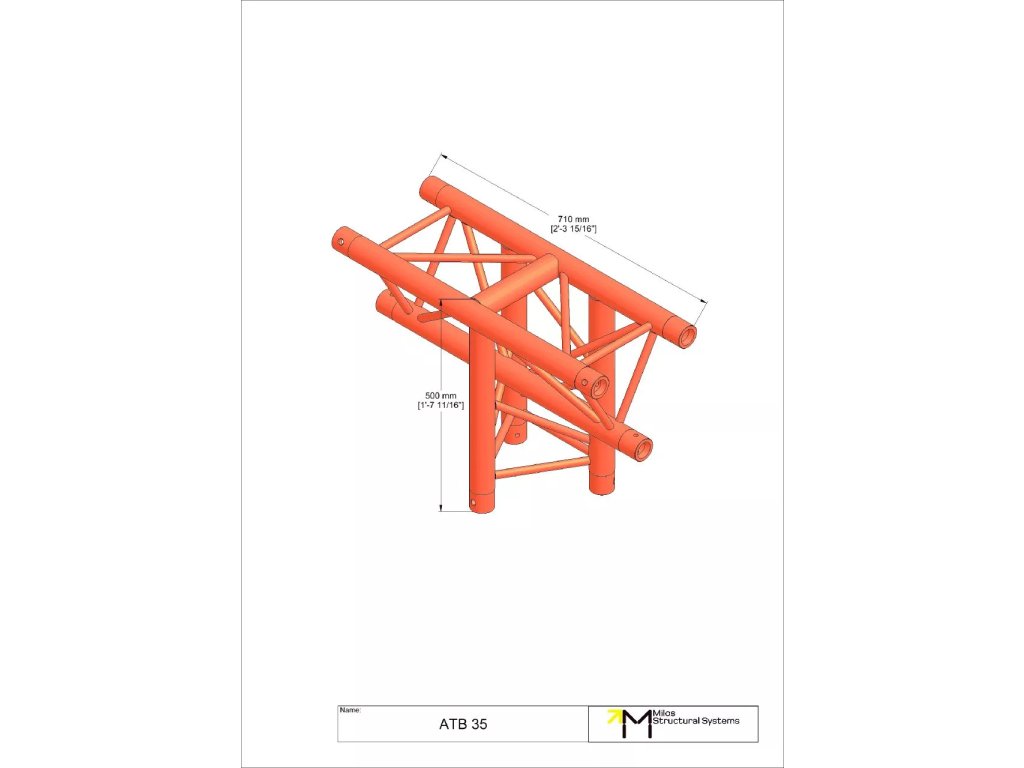

- Designation: ATV35
- length: 710 mm
- width: 500 mm
- weight: 9.6 kg
- compatible with 200 / 400 / 500 / 600 series clamps
- the possibility of another color according to the RAL swatch
- material: aluminum alloy EN - AW 6082 T6
- pipe diameter: 48 mm
- tube thickness: 3 mm
- diameter of braces: 16 mm
- thickness of reinforcements: 2 mm
- we deliver including connection pins
Additional parameters
Category: | třícestné díly |
---|---|
Weight: | 7.2 kg |
