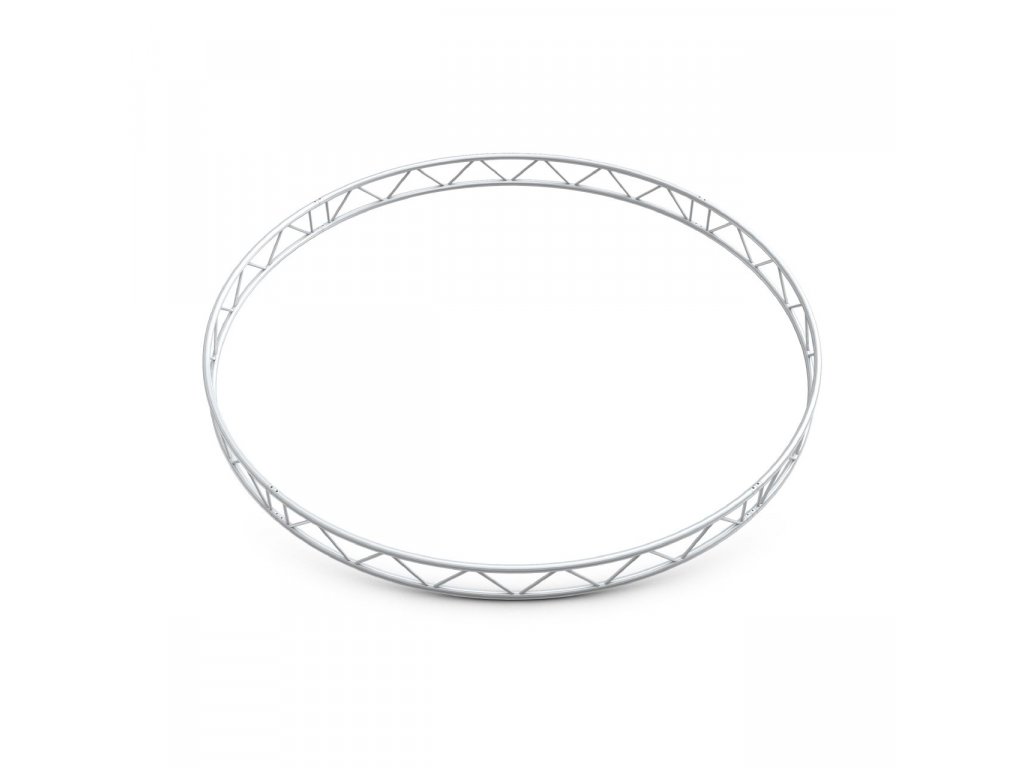

M290V DUO vertical circle

Product detailed description

Thanks to its low weight, high variability and easy installation, it finds application in various uses, whether in theaters, music clubs, lecture halls, exhibition spaces, at concerts, during the construction of stages, etc.

• designation: CrBTVdv
• load capacity 844 kg
• compatible with 200 / 400 / 500 / 600 series clamps
• the possibility of another color according to the RAL swatch
• material: aluminum alloy EN - AW 6082 T6
• pipe diameter: 48 mm
• tube thickness: 3 mm
• diameter of braces: 16 mm
• thickness of reinforcements: 2 mm
• we deliver including connection pins
• CrBTBd3000v = 3 m, 4 parts
• CrBTBd4000v = 4 m, 4 parts
• CrBTBd5000v = 5 m, 8 parts
• CrBTBd6000v = 6 m, 8 parts
• CrBTBd8000v = 8 m, 8 parts
